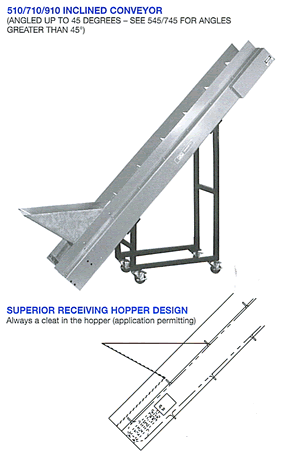

510/710/910 Inclined Conveyor Angled up to 45 degrees
Features:
4" straight side rails.
Smooth belting with cleats welded on desired centers.
115VAC single speed gearmotor.
Mounts to various stands.
See options listing.
515 -715 Series Inclined (Nose-Over) Conveyor
515 -715 Series Inclined (Nose-Over) Conveyor
510/710/910 Inclined Conveyor

Inclined Conveyors Model Designations
(E-Series Units available to 48" and any length)


CONSTRUCTION:
E = Formed mild or stainless steel channel (All frame depths available).


A = Structural aluminum extrusion (3XX, 5XX frame depths only).


FRAME DEPTH
& GAUGE:

3 = 4" deep 10 ga. steel, or 1/8" aluminum frame - underslung, motor pulley or side mounted motor only.


5 = 6 " deep 10 ga.steel or 3/16" aluminum frame - 1/3 hp (110V) / 1/2 hp (230/460V) maximum internally mounted.


6 = 8 " deep 10 ga. frame - 1.0 hp (all voltages) maximum internally mounted.


7 = 8 " deep 7 ga. frame - 1.0 hp (all voltages) maximum internally mounted.


9 = 10 " deep 7 ga. frame - 1.5 hp (all voltages) maximum internally mounted.


MOTOR MOUNT:
00 = Motor underslung beneath frame.


01 = Motor side mounted (with chain drive and right angle reducer).


07 = Motor side mounted (with hollow bore right angle reducer).

        09 = Motor pulley.


10 = Motor internally mounted, yet easily accessible.




BELT WIDTH:
(INCHES) = All frames overlap belt 1/2"on each side; exposed belt = belt width minus 1".


FRAME LENGTH:
(INCHES) = Up to 120"L (except ET). (FEET.INCHES) = Greater than 10'-0"L.


FRAME WIDTH:
(3XX / 5XX) = Belt width + 4".


(7XX / 9XX) = Belt width + 5" / 8 " (TYPICAL) .

E- 5 10- 18- 11.06    (E-Series, 6" deep frame, internally mounted motor, 18" wide belt- 17" exposed, 11'6" long frame).

Variations: ET Series = Tubular discharge end for low-profile entry into grinder opening.

(Optional) = Constructed so that the belt runs above frame-full belt width usable.

Contact your LaRos representative for assistance.
